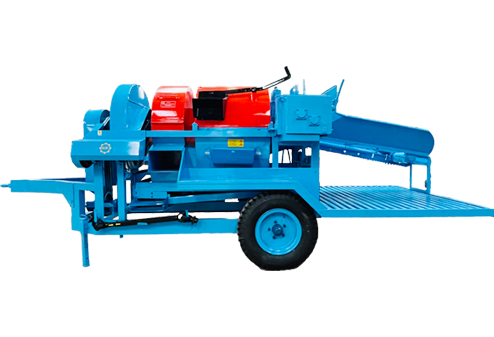

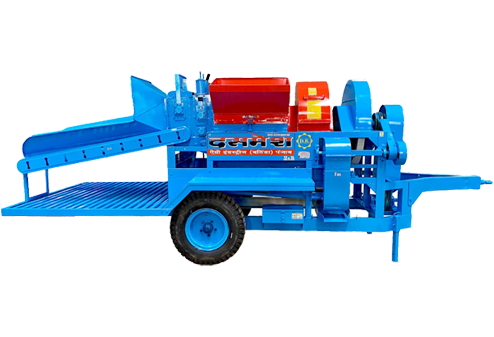

D.R. 30.32x39 ® Multicrop Thresher
Tested At Farm Machinery Training & Testing Institue, Govt Of India. Test Report No. AUJ/FMTC/21-22/TH-10/65 Price: 3,43,000
MODEL | D.R. 30.32x39® |
---|---|
POWER REQUIRED | 35-65 H.P. |
DRUM (LxW) | 812mmx990mm |
BLOWER SPEED | Variable |
GEAR BOX | Heavy Duty (Froward (High-Low)& Reverse) |
CROP INPUT MODE | Conveyor, Upper Hopper& Side Hopper |
DIMENSIONS | 5360x1720x2095 (LxBxH) mm |

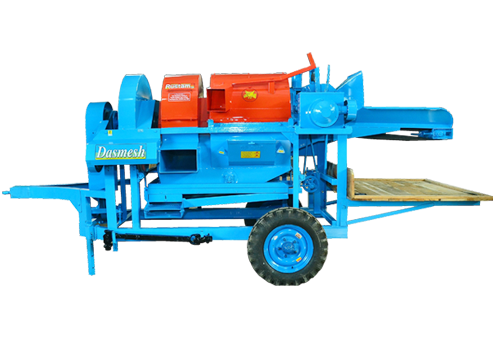

D.R. 30x37 ® Rustam Thresher ®
Tested At Farm Machinery Training & Testing Institue, Govt Of India. Test Report No. AUJ/FMTC 18-19/M – 01/144, Price: 2,94,000
MODEL | D.R. 30x37® |
---|---|
POWER REQUIRED | 35-65 H.P. |
DRUM (LxW) | 762mmx939mm |
BLOWER SPEED | Variable |
GEAR BOX | Heavy Duty (Froward & Reverse) |
CROP INPUT MODE | Conveyor, Upper Hopper& Side Hopper |
DIMENSIONS | 4980x1648x2090 (LxBxH) mm |

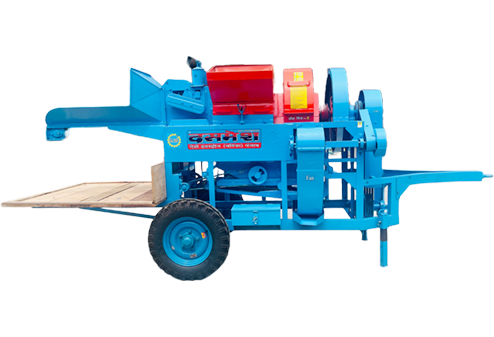

D.R. 22x36 ® Multicrop Thresher
Tested At Farm Machinery Training & Testing Institue, Govt Of India. Test Report No. AUJ/FMTC 18-19/M – 4/146 Price: 2,22,000 INR
MODEL | D.R. 22x36® |
---|---|
POWER REQUIRED | 25 HP |
DRUM (LxW) | 558mmx914mm |
BLOWER SPEED | Variable |
GEAR BOX | Heavy Duty (Froward & Reverse) |
CROP INPUT MODE | Conveyor, Upper Hopper& Side Hopper |
DIMENSIONS | 4500x1420x1970 (LxBxH) mm |

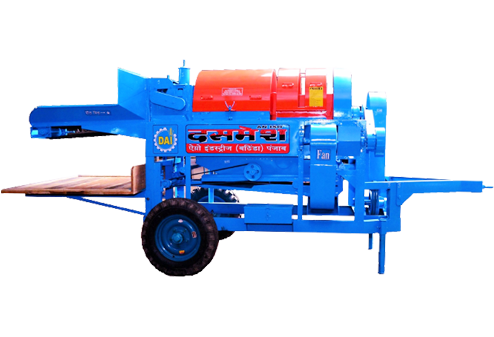

D.R. Multicrop Thresher (G-Series)
Tested At Farm Machinery Training & Testing Institue, Govt Of India.
MODEL | 32x36 (G-1) | 32x37 (G-3) | 32x37 (G-4) | 32x39 (G-5) |
---|---|---|---|---|
THRESHING DRUM | 32x36 inch | 32x37 inch | 32x37 inch | 32x39 inch |
THRESHING DRUM R.P.M | 700 to 800 | 700 to 800 | 700 to 800 | 700 to 800 |
NO. OF ROUND CUTTING BLADES | Two/Three | Two/Three | Three | Three |
CLEANING SYSTEM | Aspirators, Oscillatory Screen, Filter Fan | Aspirators, Oscillatory Screen, Small Hopper, Filter Fan | Aspirators, Oscillatory Screen, Small Hopper, Filter Fan | Aspirators, Oscillatory Screen, Small Hopper, Filter Fan |
NO. OF ASPIRATORS (BLOWERS) | Two | Two | Two | Two |
SPEED OF ASPIRATORS | Fixed | Fixed | Fixed | Fixed |
FILTER FAN | Provided (with adjustable air flow) | Provided (with adjustable air flow) | Provided (with adjustable air flow) | Provided (with adjustable air flow) |
CROP FEEDING MODE | Though Conveyor | Though Conveyor | Though Conveyor | Though Conveyor |
TRANSMISSION CONTROL | Though Gear and Head | Though Gear and Head | Though Gear and Head | Though Gear and Head |
NO. OF TRANSMISSION JOINTS | 2 | 2 | 4 | 4 |
REQUIRED MINIMUM INPUT POWER | 35 HP | 35 HP | 35 HP | 35 HP |
